The Need for an Integrated Booklet Finishing Line Producing finished booklets traditionally requires multiple separate machines – cover feeder, saddle stitcher, folder, flat press, and three‑knife trimmer – with manual transfers between each station. This fragmented workflow increases labor, handling time, and alignment errors. The HX480P Covering Stitching Trimming Machine solves this by seamlessly integrating cover feeding, saddle stitching, folding, flat pressing, and 3‑side trimming into a single automatic production line. From raw signatures to finished, trimmed booklets – all in one continuous workflow.
HX480P Covering Stitching Trimming Machine
Heavy‑Duty Steel Frame with Servo‑Driven Synchronized Feeding The HX480P is built on a heavy‑duty steel frame that provides the rigidity and stability required for high‑precision finishing at production speeds. The machine utilizes servo‑driven synchronized feeding to ensure accurate, consistent sheet transport throughout the entire line. Smart automated adjustments for stitching heads and cutting sizes minimize setup time and reduce operator intervention – allowing quick changeovers between different booklet sizes and formats. This combination of robust construction and intelligent automation delivers reliable performance for modern digital print environments.

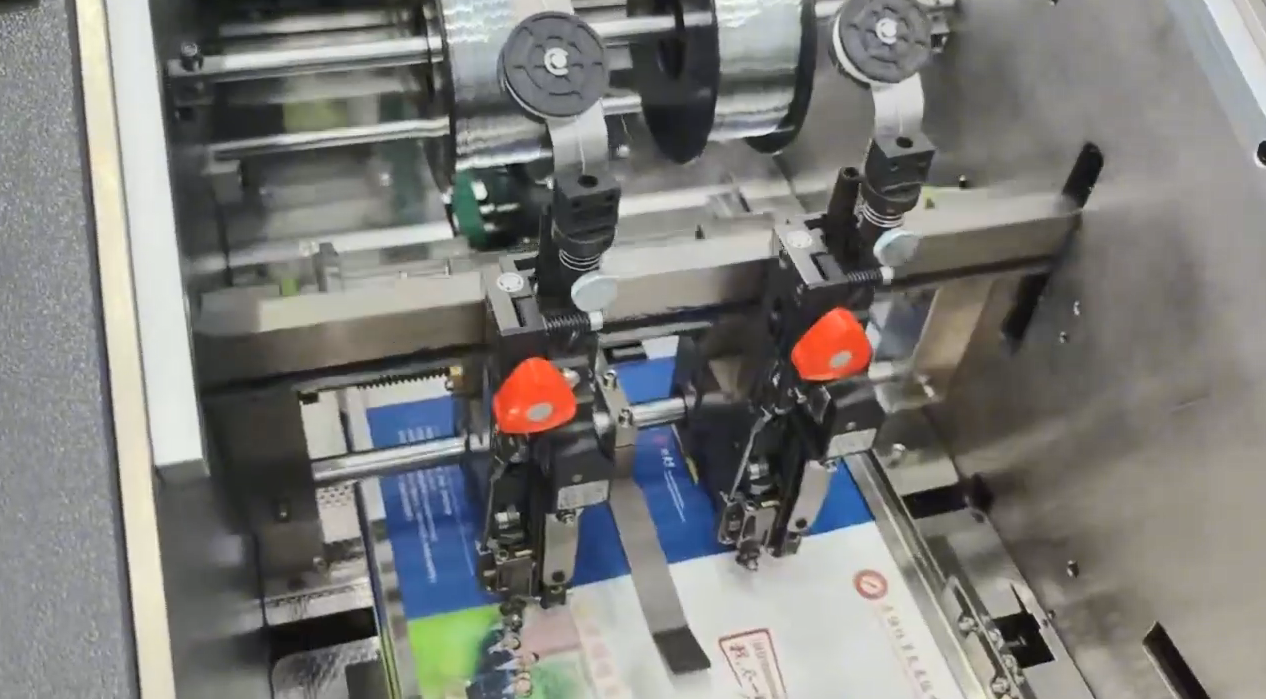

Seamless Cover Feeding and Saddle Stitching Integration The HX480P begins with automated cover feeding, delivering covers precisely to the stitching station. The saddle stitching unit securely binds signatures with wire stitches, creating a strong, professional spine. The machine then automatically folds the stitched booklets to form the finished product shape, followed by a dedicated flat pressing station that removes air and ensures a smooth, crisp finish. Each step is synchronized seamlessly, eliminating the manual handling and registration errors common in multi‑machine workflows.

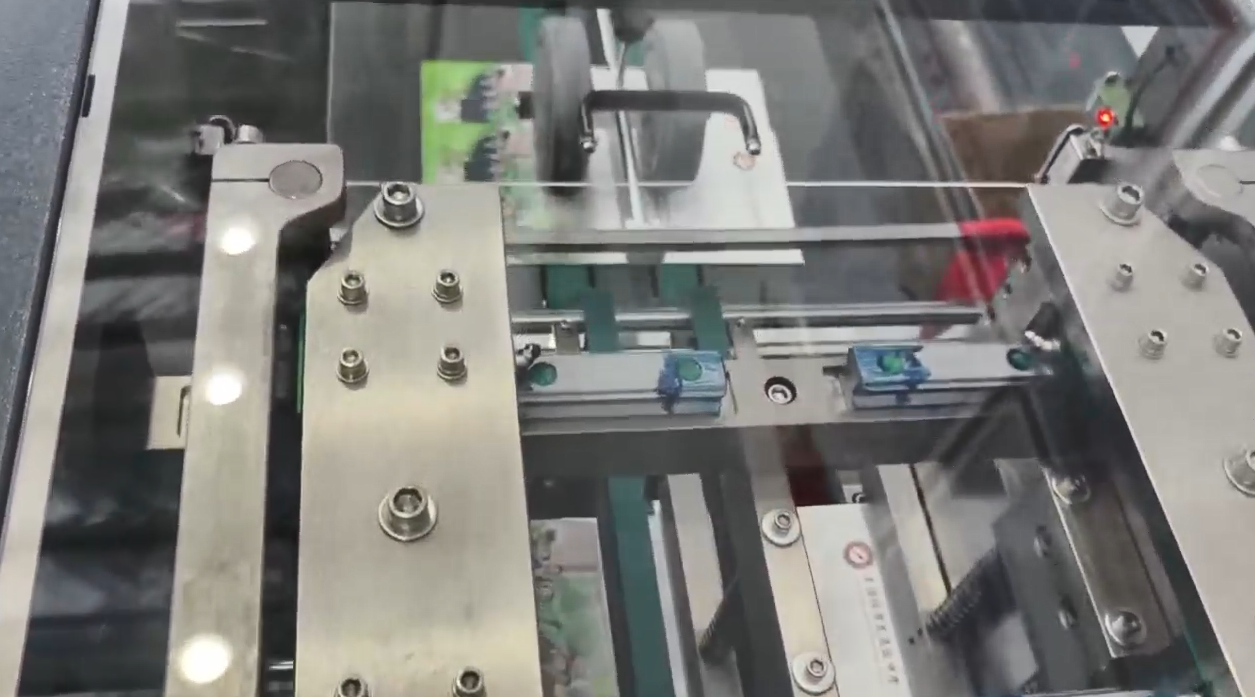

High‑Precision Front and Double‑Sided Trimming The HX480P incorporates high‑precision front and double‑sided trimming mechanisms to deliver perfectly finished edges. The front cutting unit handles lengths from 95‑238mm and widths up to 340mm, with a cutting thickness of 5mm and speeds up to 3500 times per hour. The double‑sided cutting unit handles lengths from 98‑238mm and widths from 140‑335mm, also at 5mm thickness and speeds up to 2800 times per hour. This dual‑trimming capability ensures that every booklet emerges with clean, precise edges – ready for packaging or distribution.
The Complete Booklet Finishing Solution for Digital Print For digital print shops, quick‑print centers, and binderies producing booklets, catalogs, and magazines, the HX480P Covering Stitching Trimming Machine delivers exceptional efficiency and quality. It seamlessly integrates cover feeding, saddle stitching, folding, flat pressing, and 3‑side trimming. It operates at up to 2800 cycles per hour (with cover) and 4000 times per hour (without cover). It features servo‑driven synchronized feeding, smart automated adjustments, and high‑precision front and double‑sided trimming. It minimizes setup time while consistently delivering perfectly finished booklets. Upgrade your booklet production – and finish from cover to trim in one seamless line.
HX480P Covering Stitching Trimming Machine
