HX100PKP Automatic Paper Plastic Card Punching Machine Features Vision System for Reliable Positioning at 700-1100 Sheets Per Hour

The Evolution of Card Punching – From Manual to Fully Automatic
Traditional card punching requires multiple steps: separate machines for forming, corner rounding, hole punching, and creasing. Manual handling between steps causes misalignment, waste, and slow throughput. The HX100PKP Automatic Paper Plastic Card Punching Machine transforms this workflow. Featuring an automatic sheet feeder coupled with a vision system for reliable positioning, it delivers high‑precision card production in one continuous, automated process.

HX100PKP Automatic Paper Plastic Card Punching Machine

One‑Step Production – Forming, Corner Rounding, Hole Punching, and Creasing
The HX100PKP creates punched cards in a single pass. In one integrated cycle, the machine performs:

• Card forming – accurate die‑cutting of the card shape

• Corner rounding – smooth, consistent radius corners

• Hole punching – precision holes for binding or hanging

• Creasing – score lines for folding or bending

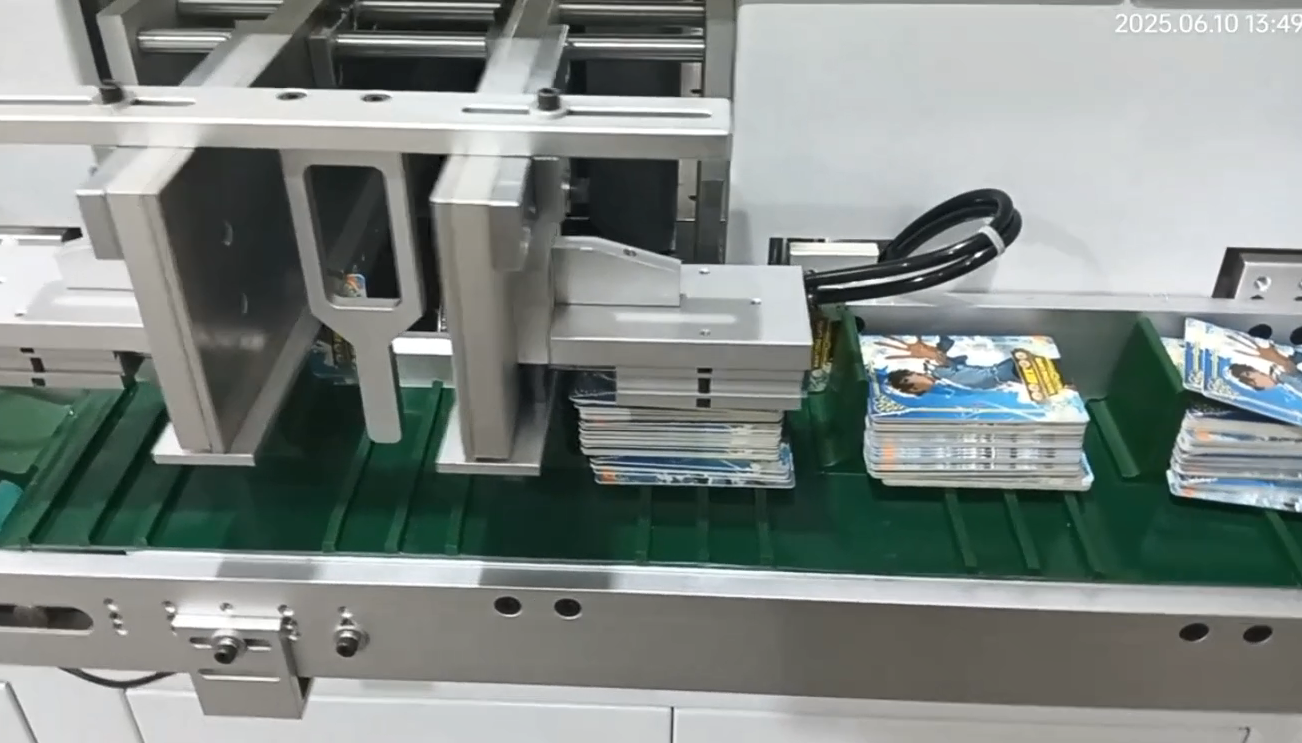

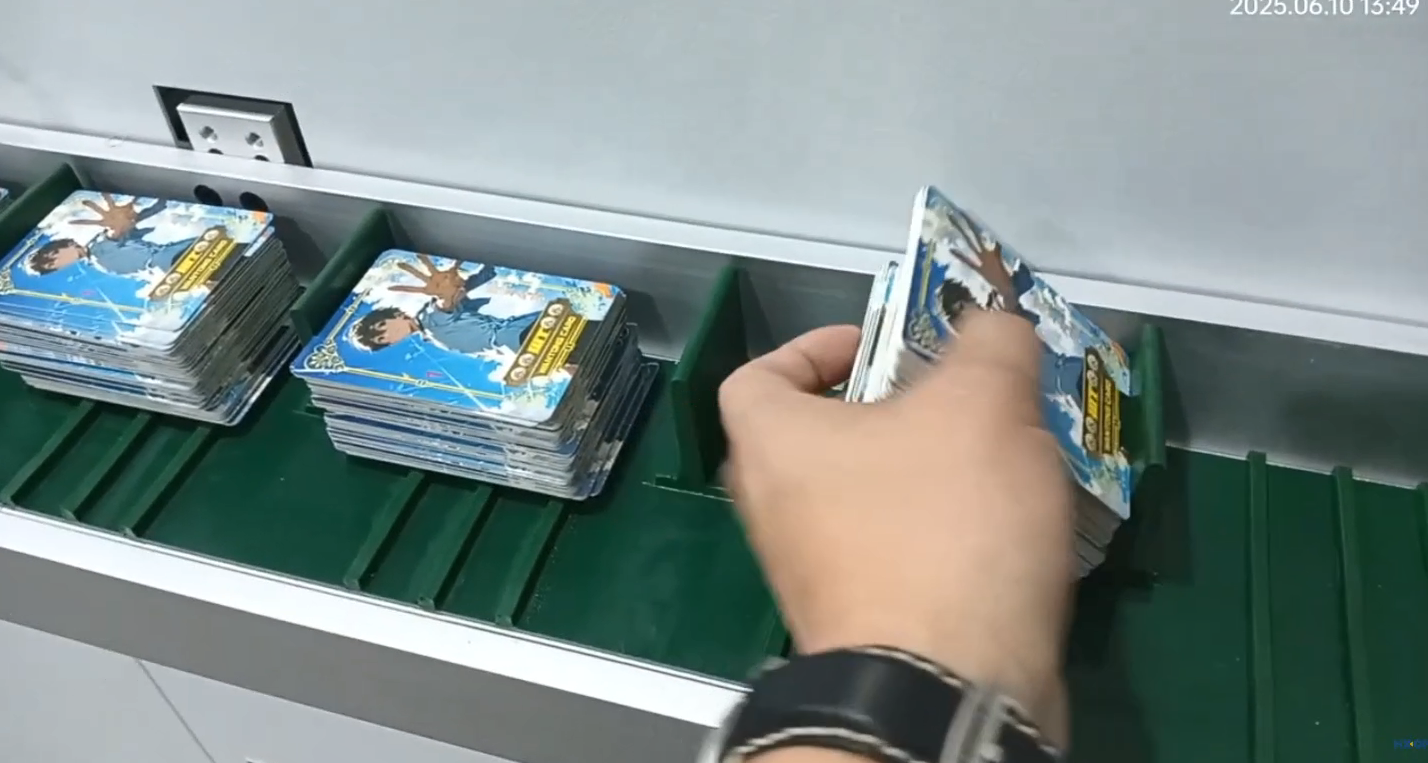

All operations are completed simultaneously, eliminating multiple handling steps. Punched cards are automatically collected in an orderly manner, ready for packaging or downstream processing. This one‑step efficiency dramatically reduces labor and increases throughput compared to traditional multi‑machine workflows.

Vision System for Reliable Positioning and ±0.05mm Accuracy

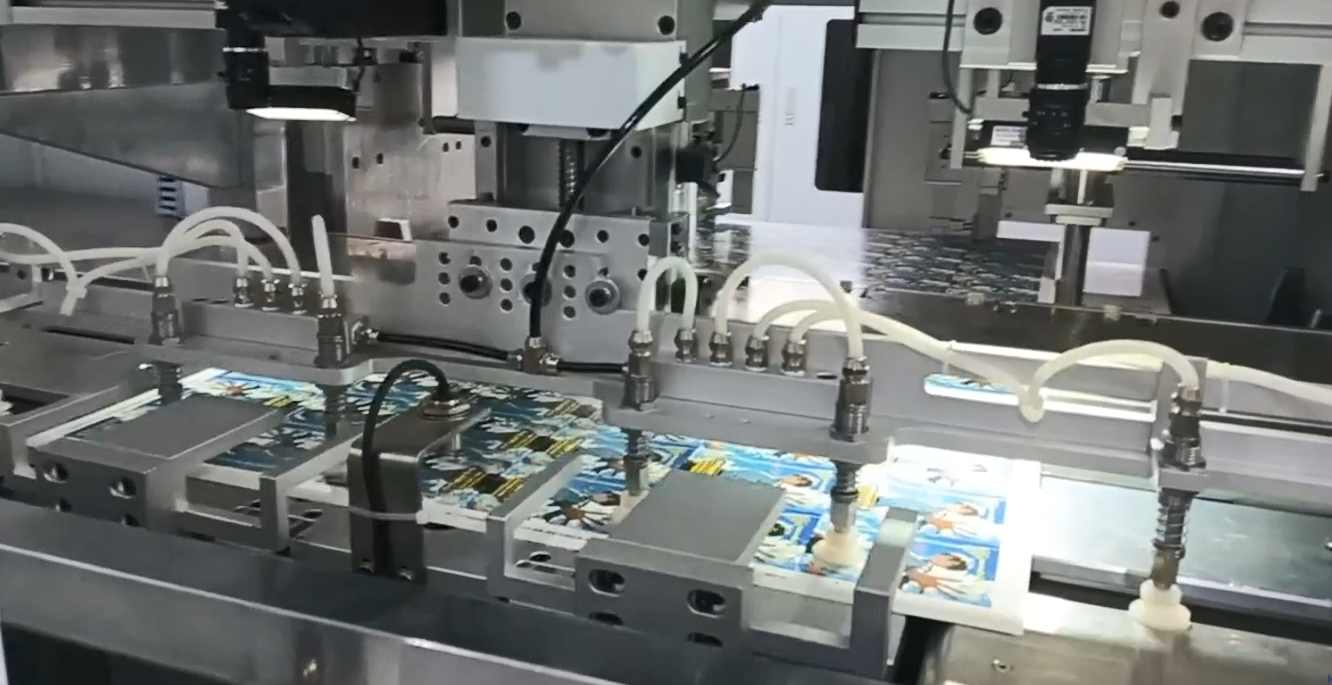

Precision is critical in card manufacturing – even 0.1mm misalignment can ruin a card or cause rejections. The HX100PKP incorporates a vision system (CCD) that detects sheet position in real time and adjusts feeding and punching parameters instantly. This ensures ±0.05mm positioning accuracy – a level of precision that guarantees consistent card quality across thousands of sheets. The vision system also compensates for slight sheet variations, reducing waste from misaligned prints.

Multi‑Material Compatibility for Diverse Card Production
Card manufacturers work with a wide range of materials. The HX100PKP is suitable for manufacturing cards from Paper, PVC, ABS, PP, PC, PET, and PVC/ABS composite materials. This versatility allows print shops and card manufacturers to serve multiple markets – from paper retail tags and PVC membership cards to durable ABS key fobs and PET loyalty cards – all on a single machine. With punching pressure adjustable from 14 to 25 tons, the machine can handle both soft paper and rigid engineering plastics.

High Capacity, Precision, and Automation for Modern Card Production
For commercial card manufacturers, print shops, and in‑plant finishing departments, the HX100PKP delivers industrial‑grade performance. It processes sheets up to 1020×720mm, produces 700‑1100 sheets per hour, and achieves ±0.05mm accuracy with vision‑guided positioning. The PLC control, servo drive system, and CCD vision integration work together for reliable, repeatable operation. One operator manages the entire process. With customizable punched card sizes and compatibility with seven material types, the HX100PKP is the complete solution for modern, high‑volume card production.
