The Challenge of Post-Press Signature Handling for Large Runs
In high‑volume commercial printing, web presses and folding machines produce folding signatures at tremendous speeds. Manually stacking, aligning, and bundling these signatures creates a bottleneck, requiring multiple workers and causing fatigue, inconsistent bundle quality, and delays. The Automatic Vertical Stacking and Bundling Machine eliminates this bottleneck entirely. It is a fully automatic delivery system for large runs of folding signatures production, handling everything from vertical stacking to final bundled output without any labor intervention. This machine completes the intelligent, automated folding process from start to finish.

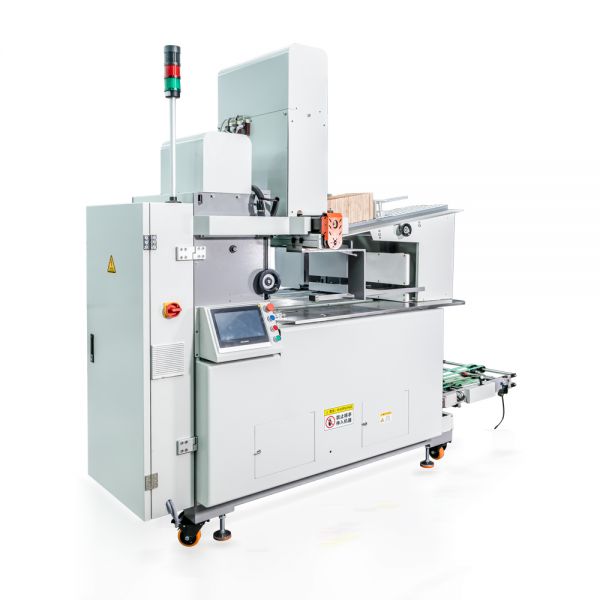

Automatic Vertical Stacking and Bundling Machine
Connected Directly to Web Press or Paper Sheet Folding Machine
The Automatic Vertical Stacking and Bundling Machine is designed for seamless inline integration. It can be connected to the web press printing machine (for continuous signature output) or to a paper sheet folding machine (for folded signatures from sheet‑fed operations). As signatures exit the upstream equipment, they enter the stacking and bundling machine automatically. No manual transfer, no intermediate carts, no operator standing at the delivery end. This direct connection ensures that the high speed of modern web presses and folders is matched by equally high‑speed finishing – a critical requirement for industrial print production.
Vertical Stacking with Pressing, Flapping, and Automatic Clapboard Insertion
Once signatures enter the machine, the Automatic Vertical Stacking and Bundling Machine begins its intelligent sequence. It collects the folding signatures vertically, building a tall, stable pile. An integrated pressing unit then presses and flaps the stack neat – vibrating and compressing the signatures to remove trapped air and align all edges perfectly. Before bundling, the machine automatically inserts a clapboard at both ends of the stack. These protective boards prevent damage to the outer signatures during compression and strapping, ensuring that every bundle arrives at the next production stage in perfect condition.
3000N Automatic Bundling – No Labor Required
After the stack is aligned and fitted with end clapboards, the Automatic Vertical Stacking and Bundling Machine moves it to the bundling station. There, the machine applies 3000N pressure – firmly compressing the stack to reduce bulk and create a tight, stable bundle. Then, bounding (strapping) the stack is completed automatically, typically with cross strapping for security. The entire process – from incoming signatures to finished, strapped bundles – requires no laborer. The machine runs continuously, only needing occasional replenishment of clapboards and strapping material. This “lights‑out” capability allows printers to run folding and bundling overnight or during unsupervised shifts.
The Complete Intelligent Automatic Folding Process

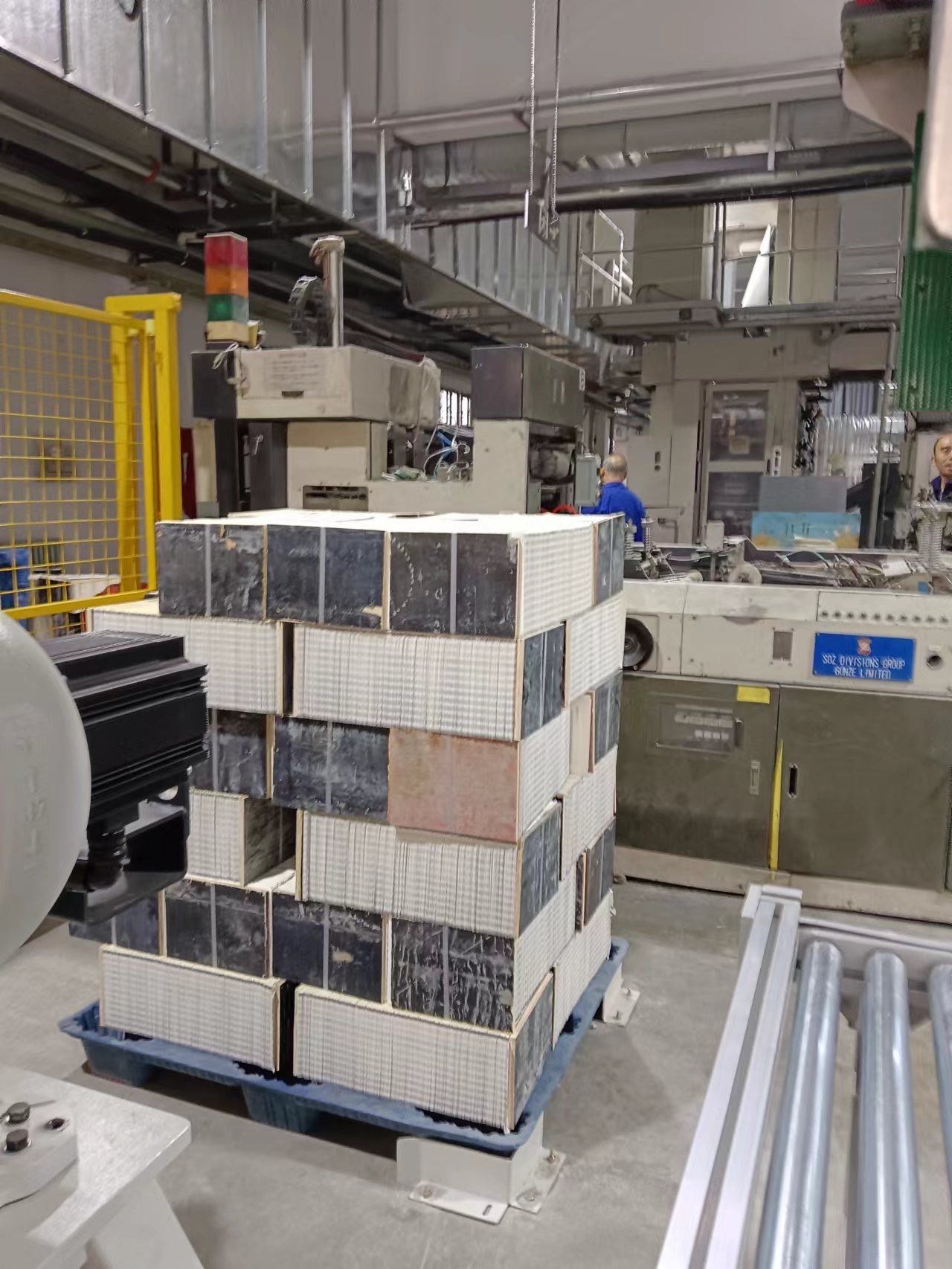

For print operations producing large runs of folded signatures – such as magazine sections, booklet inserts, or book blocks – the Automatic Vertical Stacking and Bundling Machine delivers completely the whole intelligent automatic folding process. It closes the loop from web press or folder to finished bundles ready for palletizing or further binding. By eliminating manual stacking and bundling, it reduces labor costs, prevents repetitive strain injuries, and ensures consistent bundle quality. Bundles are uniform in size, tightly compressed, and protected by end clapboards, making them easy to store, transport, or feed into perfect binders, saddle stitchers, or three‑knife trimmers. Invest in full automation – and let your folding line run from printed web to bundled signature without a single touch. |
